Customize Length Metal Welded Wedge Wire Screen For Liquid Filter Silver Color

Name: Customize Length Metal Welded Wedge Wire Screen For Liquid Filter Silver Color
Brand: Lehler
Price: 1 USD

Brand Name : Lehler

Model Number : WWS-551

Certification : WWS-551

Place of Origin : Qingdao, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1 piece 7 work days

Delivery Time : 7 work days

Packaging Details : Plywood Case for Exporting Package

NAME : Wedge Wire Screens For Liquid Filter

MATERIAL : Metal

LENGTH : Customize Length

FILTER RATING : 99%

COLOR : Silver Color

APPLICATION : Filters,gas/oil/liquid Filtration

Contact Now

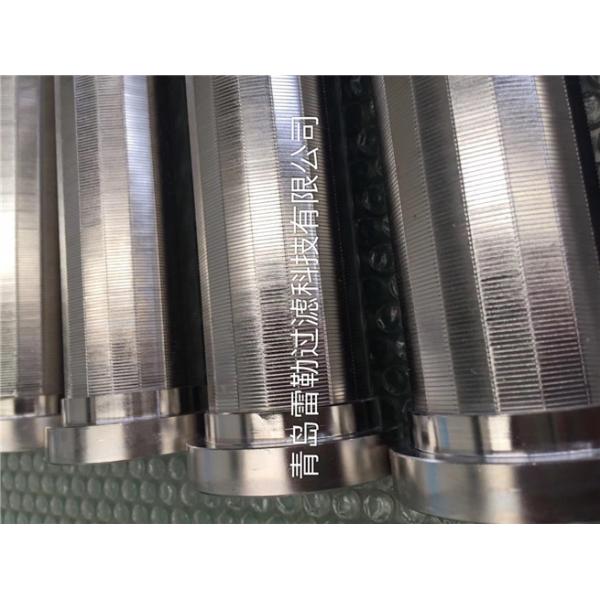

Wedge Wire Screens For Liquid Filter

Wedge wire mesh screen is mainly used in a variety of complex strong alkali environments. It is also a stainless steel mesh filter cartridge. It is mainly used in single-sided and multi-layer types. It is mainly used for liquid filtration, and is often used in backwash oil filters and cooking oils. Liquid filtration such as beverage filters. We can also customize according to your requirements.

Customize Length Metal Welded Wedge Wire Screen For Liquid Filter Silver Color

Product Details

Profile wire	Support Rod
0.75*1.5mm	2*3mm
1.0*2.0mm	2*3mm
2.0*3.0mm	3*5mm
2.0*4.0mm	3*5mm
3.0*5.0mm	3*5mm

The Wire Screen is produced by resistance welding and has a profile with the wire on the profile welded to the support rod at 90 degrees. The distance between the two contour lines is the notch, ie the filtration rate. The minimum slot is 20um. Structure is FOTI (inflow-outflow) and FITO (inflow-outflow)

Applications

Stainless steel filter cartridges are used in coatings, chemicals, petrochemicals, pulp and paper, food and beverage, solid-liquid separation, wastewater treatment, minerals and aggregate processing.

Product advantages

Our alkali-resistant stainless steel cartridges feature high-precision slot openings with a minimum slot opening of 20 microns and are the filter cartridges that maximize the filtration of particulates. It also has a smooth filter surface to reduce mechanical wear.
